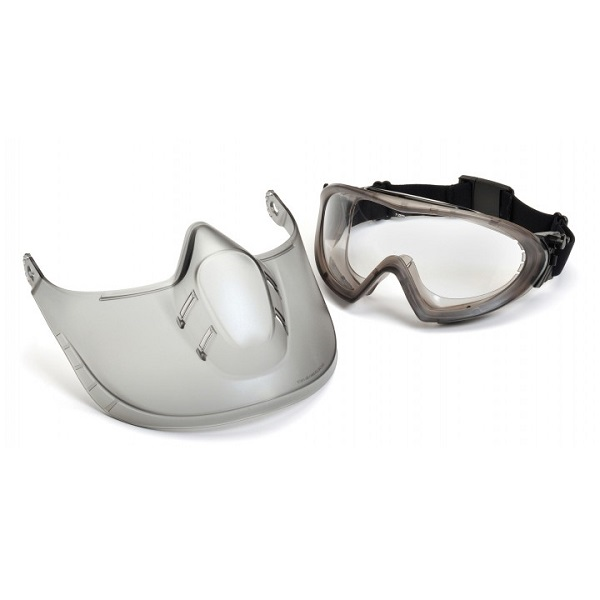

Capstone Shield – Goggle with Face Protection


Capstone Shield, PY.GG504TSHIELD

• For face protection
• Place eyeglasses into goggle, mount, adjust
• Will not fit with filtration mask
• Elastic strap contains latex


• Fully adjustable elastic band.
• Fits over prescription glasses.
• Lens is coated to prevent fogging.
• Soft vinyl goggle body conforms to facial contours.
• Goggle provides protection against dust and chemical splash.
• Scratch resistant polycarbonate lens provides 99% UVA/B/C protection.
• Removable vent caps allow the user to remove when more ventilation is required or leave in place for unsurpassed chemical splash resistance.
• Goggle incorporated with removable shield provides full face protection.
• 4 ventilation holes provide appropriate airflow.
• Ratchet shield allows user to open or close in 3 positions for adjustment.
• Polycarbonate shield conforms to the face offering increased impact and dust protection.


General Specifications for Shield:
Shield Thickness: 2.0mm
Weight: 78gm
Shield size vertical: 177.64mm
Shield size horizontal: 195.58mm
Shield size diagonal: 224.24mm
Overall width (hinge-hinge): 185mm

General Specifications for Goggle:
Lens Thickness: 2.3mm
Weight: 132gm
Lens size vertical: 78mm
Lens size diagonal: 154mm
Overall Length (Lens-Tip): 91mm
Overall Width (Hinge-Hinge): 180mm
Closest point between lens: N/A, single lens
Strap Length: 232-365mm
PD: 68mm Bridge: 45mm
Lens Base: 5.5 curve

General Specifications for Disposable Visors:
Lens Thickness: 0.1mm
Weight: 2.4gm
Lens size vertical: 6.9mm
Overall Width: 32.4mm
Bridge: 3.3mm

Packaging for Capstone Shield:
Polybag: 1pc
Outer Carton: 36 pcs

Lens Technology

Clear Lens: General purposes for indoor applications that require impact protection.

Visible Light Transmitted
380-780nm – 96%

UVA, UVB Blocked
200-380nm – 100%

Blue Light Blocked
400-700nm – 9%

IR Blocked
780-2000nm – 18%
